Gamma Studios

At the forefront of filmmaking

Gamma Studios is a world-first production setup

Dubai Production City Studio

The World's first and currently only VERONA Screen with a 1.5mm pixel pitch integrated with AI.

Designed to deliver exceptional visual fidelity, real-time environments and intelligent production workflows, the system creates a seamless bridge between creative vision and on-set execution.

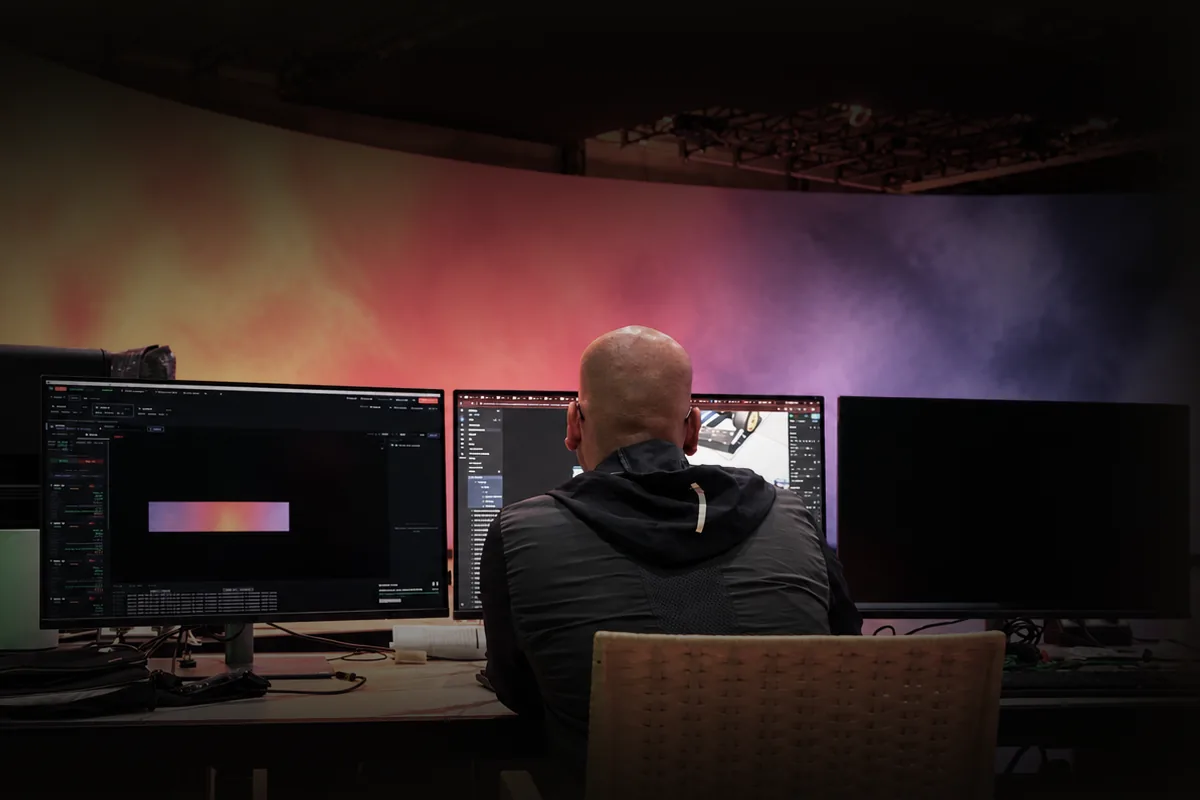

Operator at a multi-monitor control station in front of the LED wall

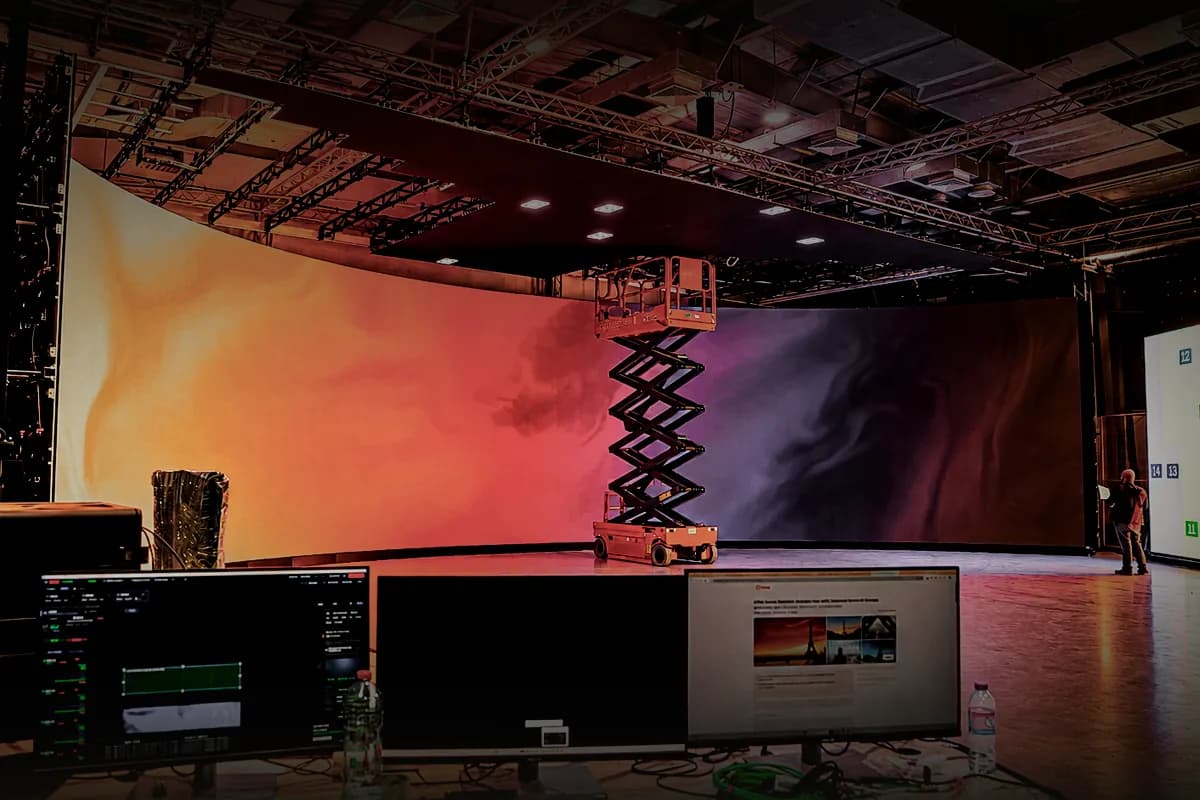

Scissor lift on the stage floor in front of the curved LED wall and ceiling

Wall Specifications

View all Specifications

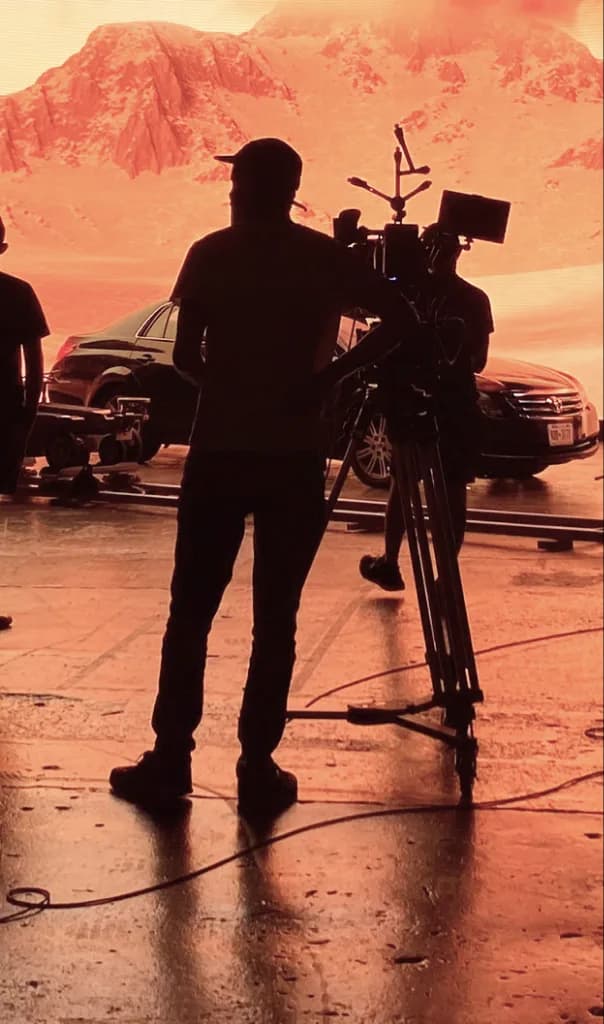

Camera crew filming in front of the main LED wall

Main LED Wall 24m x 5m 15360 x3200 px

12-bit configuration provides increased tonal precision.

Sony Ocellus camera tracking system

Enabling correct perspective and parallax for in-camera virtual production.

2 Movable Side Walls

Place and tilt according to your shot requirements with a display size of 4mx3m

12

Total Render Nodes

1 Gbps Internet Connectivity

supports remote collaboration, cloud access, asset transfer, licensing, review workflows etc

RTX PRO 6000 Blackwell with 96gb VRAM

Rendering capacity that is well suited to demanding real-time workloads

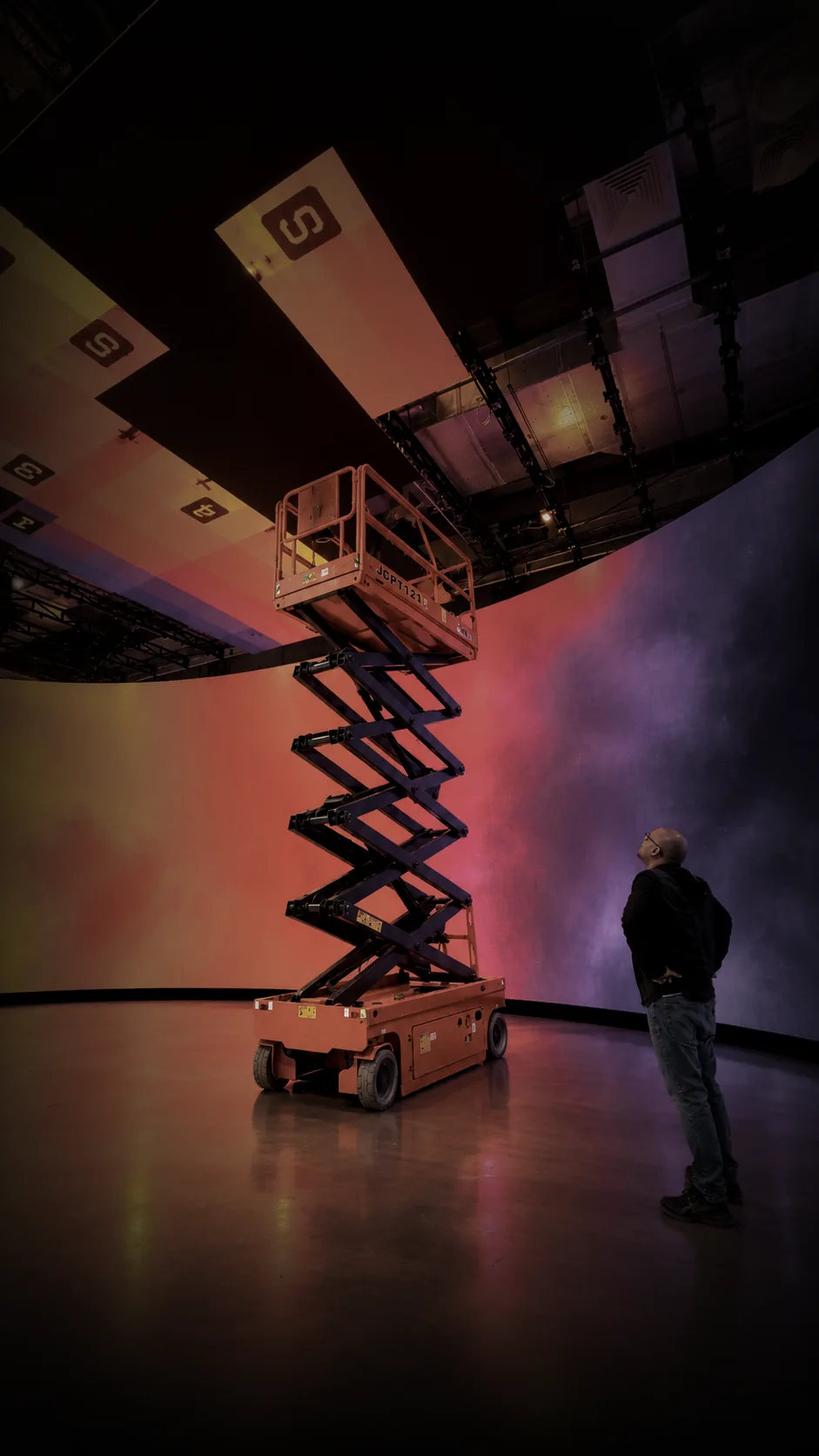

Scissor lift raised toward the curved LED ceiling

Curved LED Ceiling with 17m x 5.5m Coverage

Provides overhead content & dynamic light interaction across the production area.

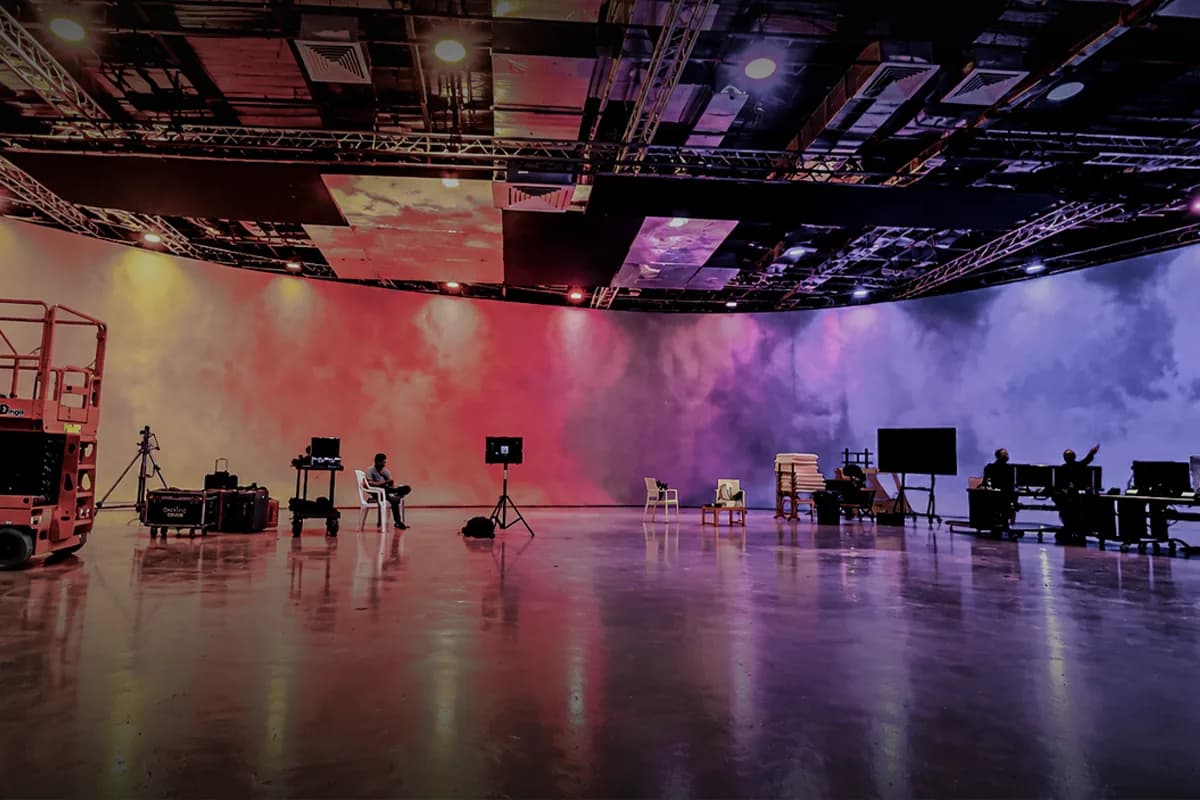

Wide view of the LED volume with crew and equipment on the stage floor

Studio at a Glance

Know More

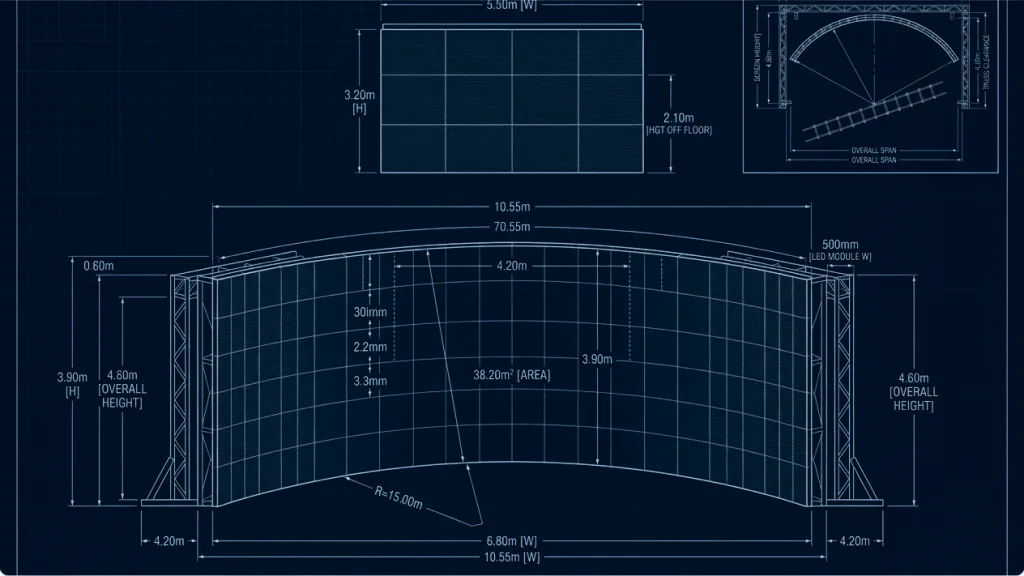

Technical blueprint of the LED volume layout and dimensions

Main LED Wall

24 m × 5 m | 15,360 × 3,200 | 480 Sony panels | 1.5 mm pixel pitch

Reflection Walls

2 × 3 m × 4 m | 1,536 × 1,024 each

LED Ceiling

Approx. 17 m × 5.5 m | 4,352 × 1,408

Render Nodes

12 × RTX PRO 6000 Blackwell, 96 GB

LED Processing

27 × SX40 | 54 × XD

Tracking

Sony Ocellus | up to 60 FPS

Control PCs

Director + Editor | RTX 5090 32 GB each

Storage

120 TB NAS

Internet

1 Gigabit

Full Specifications

Know more

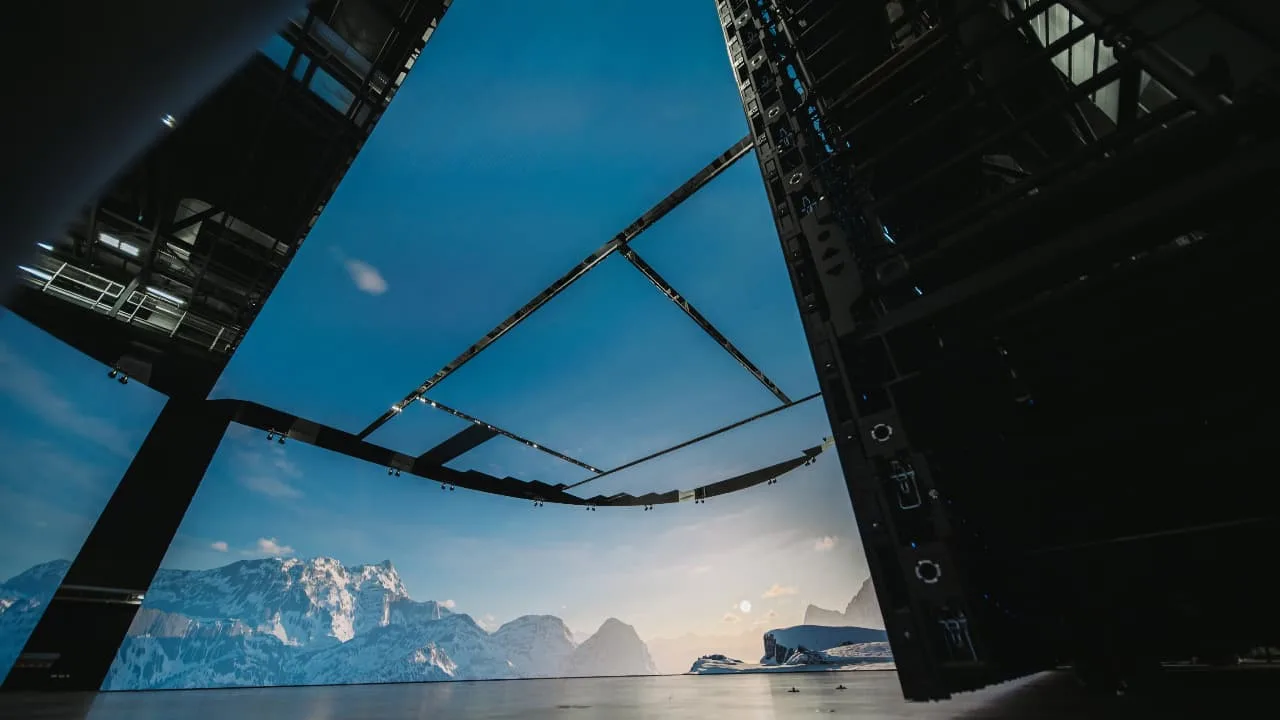

Curved LED ceiling showing a blue sky

Curved overhead LED ceiling for overhead environmental lighting, skylight interaction, and reflections.

SpecificationsDetails
Coverage AreaApprox. 17 m × 5.5 m
Effective Resolution4,352 × 1,408 pixels
Dedicated Render Nodes2 render nodes (RTX PRO 6000 Blackwell, 96 GB VRAM each)
Ceiling Node 1 Output2,304 × 1,408 pixels via 1× SX40
Ceiling Node 2 Output2,048 × 1,408 pixels via 1× SX40
LED Processing Units2× Brompton Tessera SX40 & 4× Tessera XD total

The Future of Film Production is Here

Looking for custom requests?

Contact Us
